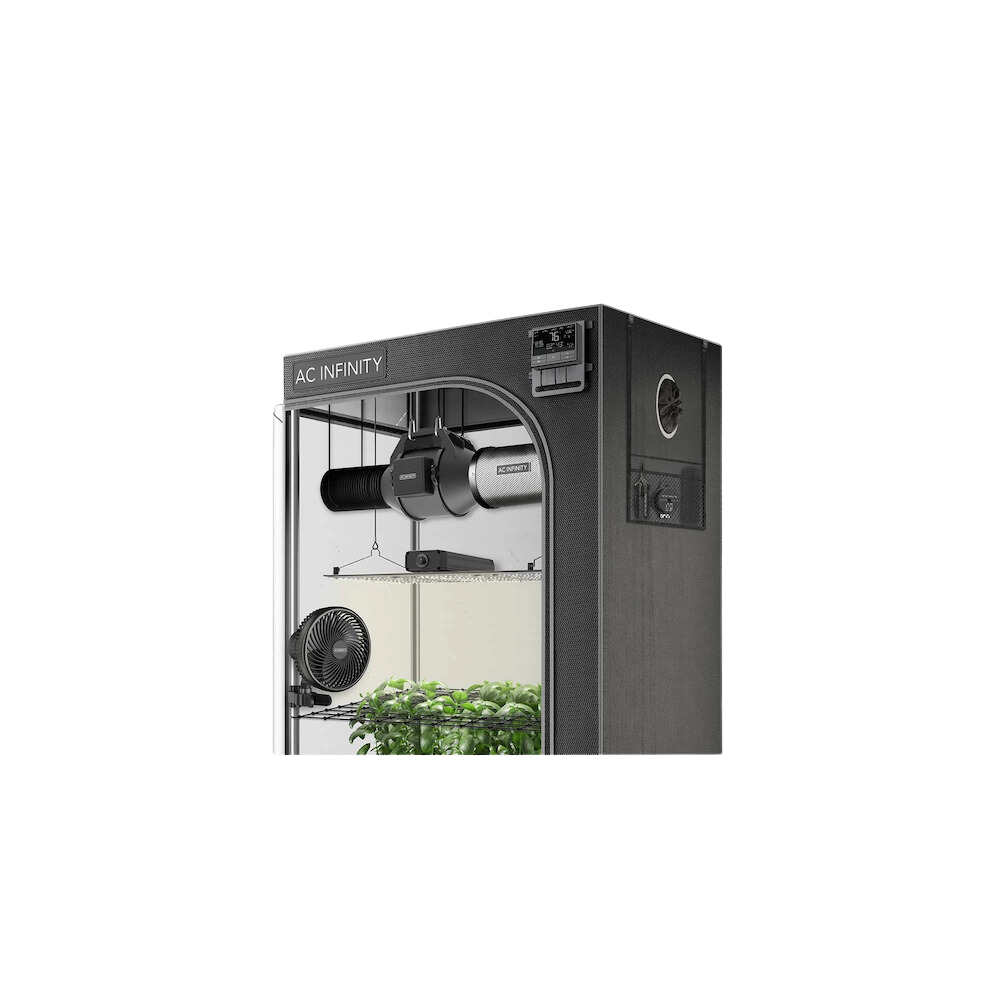

An advanced grow tent system with intelligent control options to manage your grow environment and ensure ideal growing conditions for a successful harvest. The inline fan, activated carbon filter and ventilation ducts control the climatic conditions in the tent by removing heat, humidity and odours from the tent. The oscillating clip-on fan circulates the air inside and provides a gentle breeze for your plants. Algorithmically selected and arranged LM301H diodes on the grow light board emit powerful LED lighting over a wide area to simulate natural sunlight and optimise growth. These components are housed in a high-density Oxford tent, equipped with a sturdy steel frame and Mylar walls to create a climate-controlled grow room.
The CONTROLLER 69 PRO is the centrepiece of these components and allows all units to be programmed together or independently. This central control unit can set dynamic programmes that activate your grow devices in response to vapour pressure deficit (VPD), temperature and humidity, helping you to create your ideal grow room. Timer, cycle and schedule modes allow customised activation on demand for a variety of indoor growing purposes. Securely connect to the AC Infinity app via WiFi to access your indoor grow system from anywhere outside your home and unlock advanced programmes, alerts, notifications and historical charts.
This package contains all the essential components to get you started quickly with your indoor grow without having to buy them individually.
The complete grow tent set contains the following components:
Technical specifications:
Manufacturer AC Infinity Inc.
Product name Advance Grow System B24
Manufacturer number AC-PKB24
Size 60 x 120 x 180 cm
Ventilation openings 100 mm & 150 mm & 200 mm
Viewing window 30 x 30 cm
Material
Outer tent material 2000D Oxford
Inner tent material Mylar
Material frame 22 mm steel tube
Load capacity frame 75 kg
Product dimensions Inline fan
Connection 150 mm
Dimensions 21.2 x 32.0 x 20.0 cm
Cable length to controller 183 cm
Length of power cable 183 cm
Performance and technical data Inline fan
Total air flow 600m3/h
Noise level 34 dBA
Static air pressure 394 Pa
Electrical voltage 100 - 240 V (50/60 Hz)
Power max. 65 W
Average power 35 W
Current 0.95 A
Power plug Schuko plug with CH adapter
Humidity range 35 to 85% RH
Temperature range 0 - 60 °C
Protection class IP44
L10 Life expectancy 67,000 hours
Product dimensions - Clip fan
Blade size 16.5 cm
Dimensions 22.2 x 26.6 cm
Power cable 244 cm
Product performance and technical data - Clip fan
Total air flow 552m3/h
Noise level 31 dBA
Static air pressure 25 Pa
Electrical voltage 100 - 240 V (50/60 Hz)
Power 11 W
Current 0.15 A
Power plug Euro plug with CH adapter
Humidity range 35 to 85% RH
Temperature range 0 - 60 °C
Protection class IP44
Product performance and technical data - Controller
Number of individually controllable devices 4
Max. supported power 10 W
Input voltage 9 - 18 V
Output 1 W
Current 0.1 A
Humidity range 35 to 85% RH
Temperature range 0 - 60 °C
Product dimensions - LED Grow Light
Dimensions 30 x 60 cm
Power supply unit (driver) dimensions 21.9 x 4.0 cm
Product performance and technical data - LED Grow Light
Light cover 60 x 120 cm
Diodes Samsung LM301H
Number of LEDs 544
Power supply unit (driver) AC Infinity driver, model IB-200
Efficiency 2.65 µmol/j
Spectrum 660nm, 730nm, 3000K, 5000K
Output 220 W
Electrical voltage 100 - 277 V (50/60 Hz)
Current 0.92 A @ 240 V
Power plug Schuko plug with CH adapter
Humidity range 35 to 85% RH
Temperature range 0 - 60 °C
Life expectancy 50,000 hours
