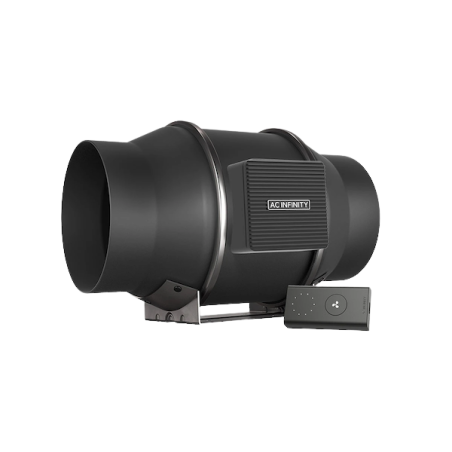

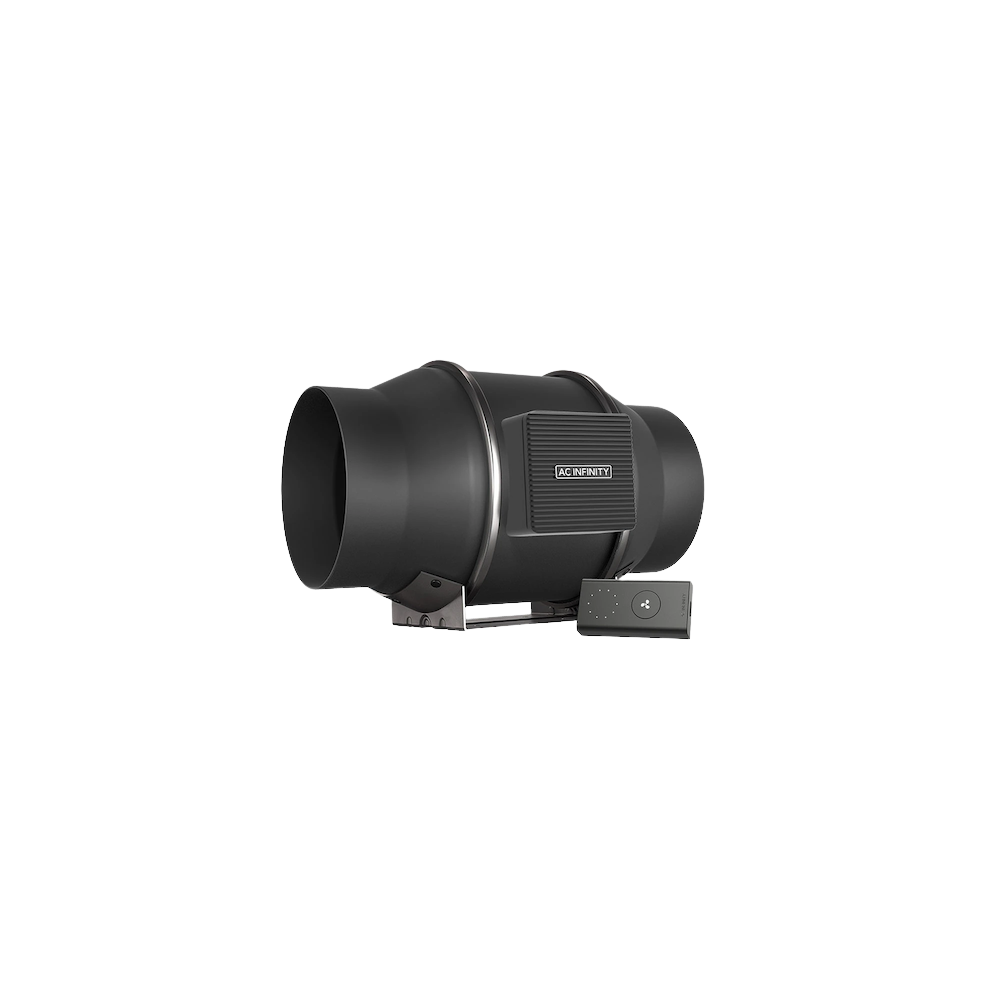

AC Infinity - Cloudline PRO S6, quiet inline fan system with speed controller, 150 mm

A smart ventilation unit for grow tents that provides quiet ventilation, supports heating/cooling and circulates fresh air. The inline duct fan can maintain airflow even at high static pressure thanks to its inline mixed-flow design. Equipped with a PWM-controlled EC motor, it offers quiet and energy-efficient operation. The housing with motor, fan and blades can be easily removed for cleaning and maintenance. It features intelligent control with programmable climate and time functions and can be connected to multiple UIS controllers. This product is part of the UIS™ platform, which can be combined to create your ideal growing environment.

PRECISE SPEED CONTROLLER

To achieve optimum noise and airflow performance in different environments, the speed controller of the inline fan has ten settings. The powerful EC motor of the inline fan supports precise airflow control through the use of PWM control. This low-noise and energy-efficient design ensures quiet operation at very low speeds and prevents motor damage. low speeds, thereby preventing motor noise.

It is also equipped with a backup memory that retains the last speed setting in case the power supply to the control unit is interrupted.

Thanks to the mixed flow design with stator guide vanes and two hydrodynamic flow circuits, the fan can also be used in areas with limited air flow. The motor can be mounted in any direction and is equipped with double ball bearings. In addition, the unit is protected against dust and liquids in accordance with IP44 and is perfectly suited for use even in harsh environments.

APPLICATIONS

This low-noise fan system can be used in many areas. It is suitable, for example, for cooling rooms with audiovisual equipment, cabinets, shelves and, of course, it can be used in hydroponics rooms and grow tents.

Manufacturer AC Infinity Inc.

Product name CLOUDLINE A6

Manufacturer number AI-CLS6

Product dimensions:

• Connection 100 mm
• Dimensions 21.2 x 32 x 20 cm
• Cable length to controller 3 metres

Performance and technical data Inline fan:

• Total air flow 683 m3/h
• Noise level 32 dBA
• Maximum revolutions 2800 RPM
• Static air pressure 223 Pa
• Electrical voltage 100 - 240 V (50/60 Hz)
• Maximum power 70 W
• Average power 38 W
• Current 0.94 A
• Power plug CH plug
• Humidity range 35 to 85% RH
• Temperature range 0 - 60 °
• Protection class IP-44
• L10 life expectancy 67,000 hours
• Certifications CE, RoHS, ETL
