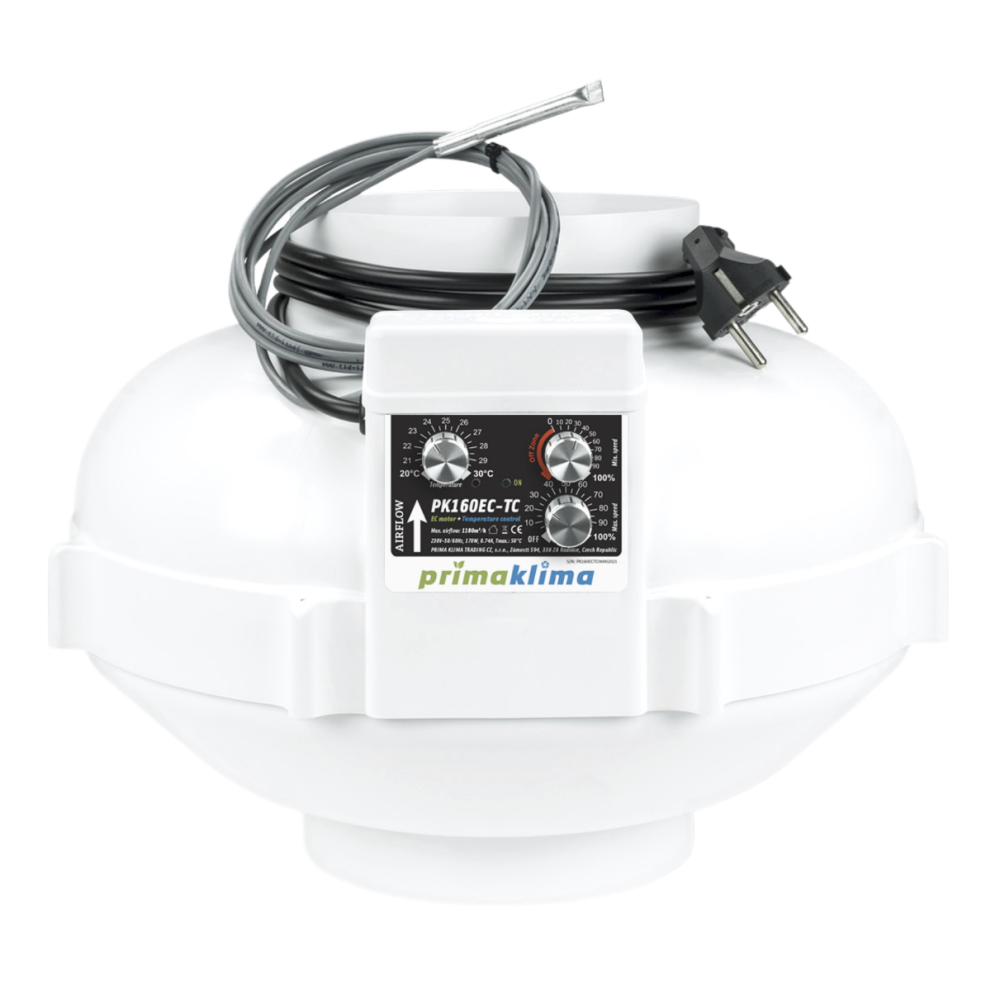

Prima Klima - PK160EC-TC 1180m³/h Speed pipe fan with climate controller

10226
CHF339.00
Tax included

Pipe fan Prima Klima 160mm EC-TC 1180m³/h Speed and climate controller

Quantity
In Stock

Vision, Basel: 0
Greendoor, Aesch: 3

PrimaKlima has brought a new highlight onto the market with the PK160EC-TC tube ventilator, which impresses with its particularly high quality workmanship, energy efficiency and very quiet running performance. The tubular fan has a temperature control as well as an integrated speed control, which is not only practical but also eliminates the need to purchase an optional speed control.

The built-in EC motor from Ziehl-Abbeg (Made in Germany) shines with its low power consumption, high pressure build-up,

performance and it is particularly quiet in operation. The integrated speed governor allows a stepless adjustment of the mileage and the whole thing completely without annoying humming noises.

The built-in speed controller is factory set to approximately 360 cbm/h (approx. 22 Watt power consumption). With this setting, volume, power and power consumption are within an optimal range. The maximum power can be adjusted steplessly using a small screwdriver on the outside of the housing. When dimmed, the fan only consumes the energy corresponding to its speed. The fan is supplemented by its automatic temperature control, simply set the desired room temperature (20° - 30°), the rest of the work is done by the temperature control.

Advantages at a glance:

  • EC technology, i.e. electricity savings of up to 70 % depending on the load compared to the AC version.
  • Super quiet operation thanks to state-of-the-art EC technology.
  • Finally, no more humming over the entire speed range.
  • Temperature-dependent switching between two freely selectable speeds.
  • Maximum speed adjustable via trim potentiometer. Ex works max. 360m3/h with a power consumption of 22 Watt are pre-set.
  • The expected lifetime of the motor is > 12 years.
  • The top class of Ziehl & Abegg, 170 Watt EC motor, maximum power 1180m3/h, pressure 100mbar. There is no better motor!

Technical data:

Energy efficiency A++
Voltage 230 Volt 50/60 Hz
Power consumption 0-170 Watt / 0-0.74A (speed dependent)
Throughput max. 1180 cbm/h
max. pressure 1000 Pa
max. working temperature 42 °C
Diameter 160 mm
plug cable approx. 2 meters long
Temperature sensor cable approx. 2 meters long
Weight approx. 3,5 Kg

Made in Germany

Scope of delivery:

  • Pipe fan PrimaKlima PK160EC-TC 1180m³/h Multispeed incl. connection cable and temperature sensor
  • Mounting bracket for wall mounting with screws
