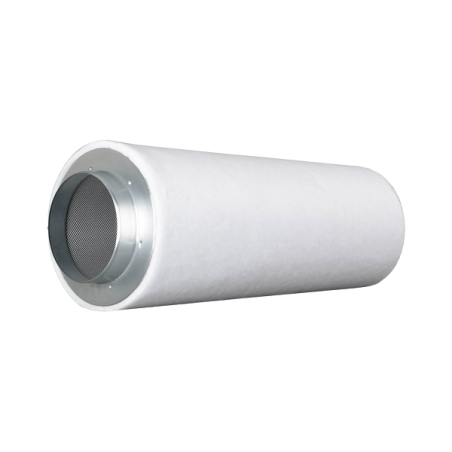

Prima Klima - Eco-Line K2603-160 activated carbon filter, 700 m³/h

• Unbeatable value for money: Maximum filtration performance and industry standard at an economical purchase price.
• High-efficiency CTC75 carbon: Uses premium virgin activated carbon with an active surface area of > 1200 m²/g for complete adsorption.
• High airflow: Easily handles an airflow of up to 900 m³/h, ideal for 160 mm exhaust systems.
• Sustainable & robust: Thanks to its high-quality metal construction, the filter is refillable, which protects the environment and minimises operating costs in the long term.

The components in detail

Premium CTC75 activated carbon bed

The heart of the filter is the 3 cm deep bed of highly activated virgin carbon.

• Optimal contact time: The depth of the carbon bed and the porosity of the CTC75 carbon guarantee an exceptionally long interaction with the passing air – critical for the complete neutralisation of strong odours.
• Long service life: The high quality of the carbon ensures lasting adsorption capacity over many months.

Industrial construction

Designed for maximum stability and ease of use.

• Secure connection: The extra-long 160 mm flange ensures a firm and completely airtight connection to your duct fan.
• Integrated dust protection: The included K2703 pre-filter protects the carbon bed from contamination by dust and hair, keeping air resistance consistently low.

Technical details

1. Dimensions & weight

• Flange: 160 mm
• Length: 650 mm (excluding flange)
• Diameter: 230 mm
• Weight: 6.9 kg

2. Performance data

• Maximum airflow: 900 m³/h
• Optimal airflow: 700 m³/h
• Activated carbon: CTC75 Virgin (4 kg)
• Bed depth: 3 cm
• Surface area: > 1200 m²/g

3. Features & specifications

• Category: Eco Line
• Maintenance: Refillable, includes K2703 pre-filter
• Material: High-quality stamped metal parts
