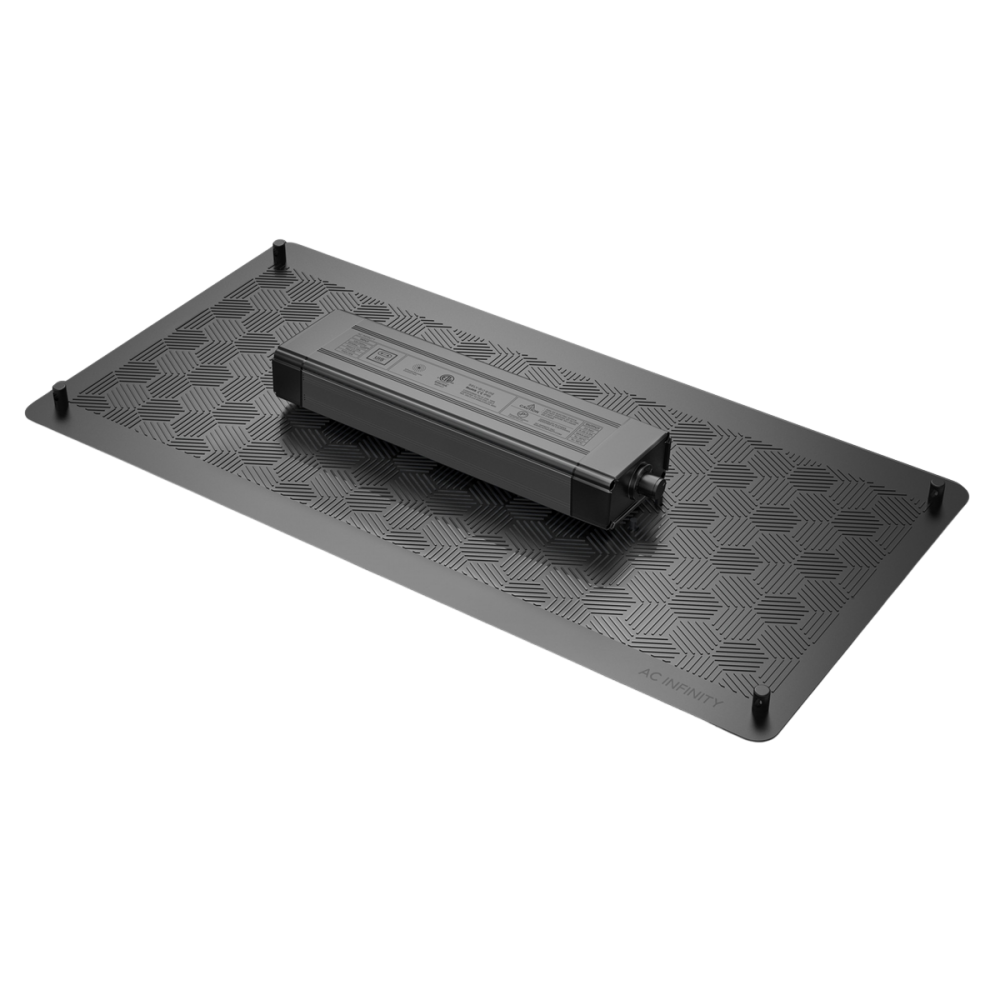

AC Infinity - IONBOARD S24 – Full Spectrum LED Grow Light 220W

Features & benefits

• Optimised spectrum: Samsung LM301H LEDs (3000K & 6500K) are specially formulated for maximum plant yields and cover all growth phases.
• Maximum yields: Algorithmically positioned diodes ensure even PAR distribution and deep light penetration.
• Dimmable: The integrated dimmer allows brightness control from 0 to 100% in 20% increments.
• Future-proof control: The proprietary LED driver enables daisy chaining and can be connected to smart controllers. This provides access to growth cycles, schedules and app control as part of the UIS™ platform of Grow devices.
• Robust & durable construction: Manufactured on a fanless unibody aluminium plate for efficient heat dissipation and extended diode life. All components are sealed to IP-65 standards, ideal for environments with higher humidity and heat.
• Coverage area: Efficient lighting area of 60 x 120 cm, particularly suitable for grow tents with reflective Mylar lining.

Technical data

• Manufacturer: AC Infinity Inc.
• Product name: IONBOARD S24
• Product model: AC-IBS24
• Light mass: 30.0 x 60.0 cm (11.81 x 23.62 in.)
• LED board thickness: 1.1 cm (0.43 in.)
• Driver dimensions: 21.9 x 4.0 cm (8.62 x 1.57 in.)
• Coverage area: 60 x 120 cm (2 x 4 ft.)
• Diodes: Samsung LM301H
• LED chip count: 544
• LED driver: AC Infinity Proprietary Driver IB-200
• Efficiency: 2.65 µmol/j
• PPFD: 1726 PPFD
• Spectrum: 660nm, 730nm, 3000K, 6500K
• Power: 220 W
• Voltage: 100-277V AC
• Frequency: 50/60 Hz
• Amperage: 1.84 A @ 120V | 0.92 A @ 240V | 0.80 A @ 277V
• Controller: Digital dimmable timer
• Power connection type: CH plug
• Operating humidity: 35 to 85% RH
• Operating temperature: 0 to 60°C (32 to 140°F)
• Life expectancy: 50,000 hours

Scope of delivery

• 1x IONBOARD S24 Full Spectrum LED Grow Light
• 1x pair of metal rod hangers
• 1x pair of rope hangers
