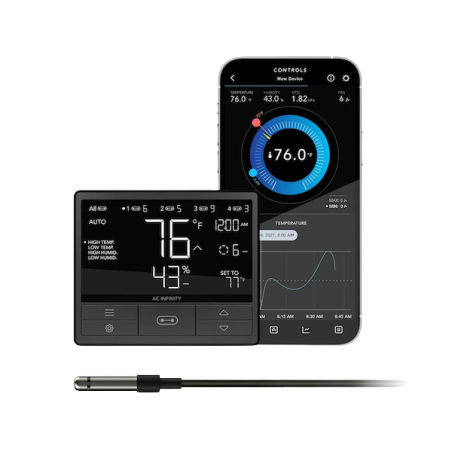

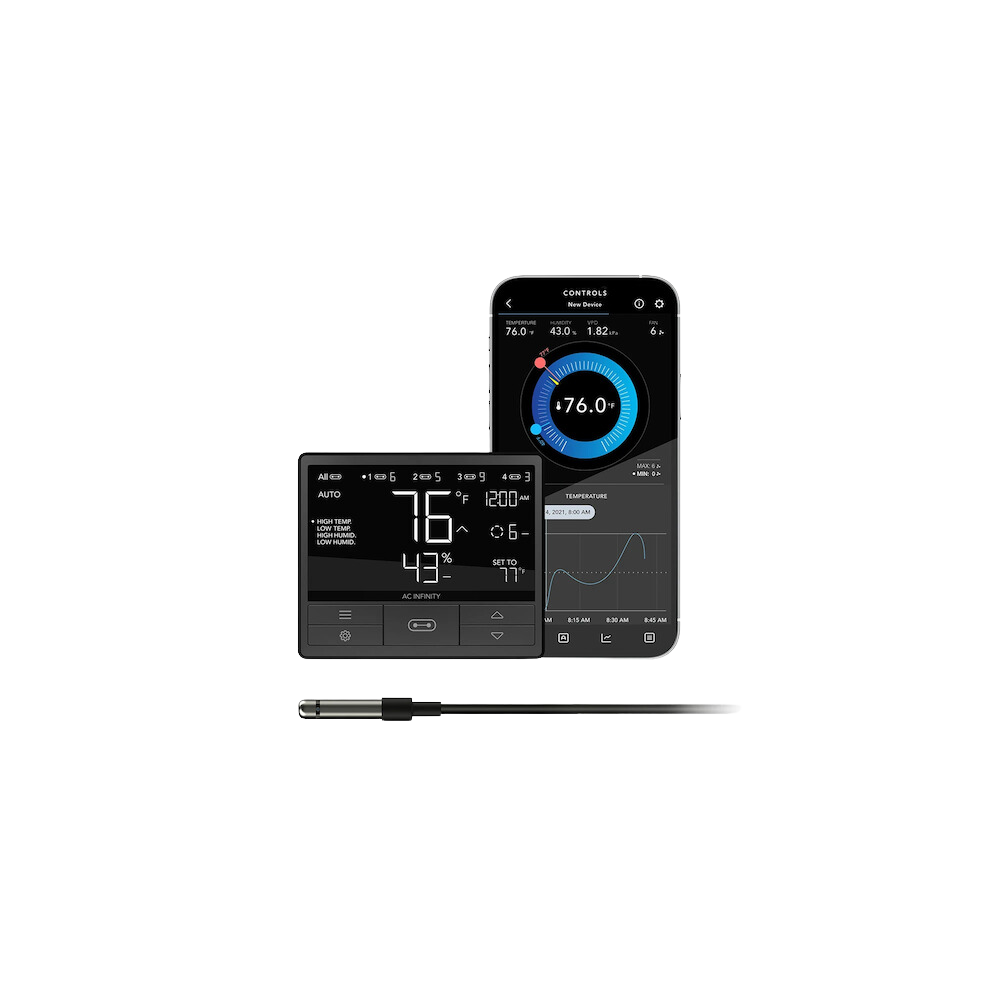

The intelligent control allows dynamic adjustments to light intensity or fan speed depending on climate triggers. Various time modes, minimum values and transitions guarantee precise control of your grow equipment. Compatible with the entire UIS™ platform, including CLOUDLINE, IONFRAME, CLOUDRAY and many other components. The controller comes with a precise temperature and humidity sensor and can be flexibly mounted thanks to a wall bracket or stand.
COMPATIBILITY
Devices within the UIS™ ecosystem, which includes all AC Infinity LED grow lights and EC fans, are compatible. The scope of delivery includes two adapter dongles for connecting EC motor fans with 4-pin Molex plugs. Compatible devices in the AC Infinity series include
- CLOUDFORGE series - humidifiers
- CLOUDLINE series - inline duct fans
- CLOUDRAY series - clip circulation fans
- IONBEAM Series - LED Grow Lights
- IONFRAME Series - LED Grow Lights
- IONGRID Series - LED Grow Lights
- IONBOARD Series - LED Grow Light Boards
- UIS Control Plug - Control of plug-in devices (0=Off, 1-10=On)
- UIS lighting adapter - control of lights from other brands
Advantages at a glance
- Control up to 8 devices simultaneously
- Independent programmes for each connected device
- Reacts to temperature, humidity and VPD
- Programmable schedules, cycles, transitions and minimum values
- Connection via WiFi & Bluetooth to the AC Infinity app
- Real-time monitoring, alarms, history charts and CSV export
- Compatible with all AC Infinity UIS™ devices.
Technical
- Model: CONTROLLER 69 PRO+ (CTR69Q)
- Dimensions: 13.4 x 8.8 x 3.6 cm
- Sensor length: 365.8 cm
- Device connections: max. 8
- Temperature range: 0 – 60 °C
- Humidity: 35 – 85 % RH
- Operating voltage: 9 – 11 V
- Power: 1.4 W
- Screen size: 11.6 x 5.4 cm
- App: 2.4 GHz WiFi, Bluetooth
- Certificates: CE, RoHS
