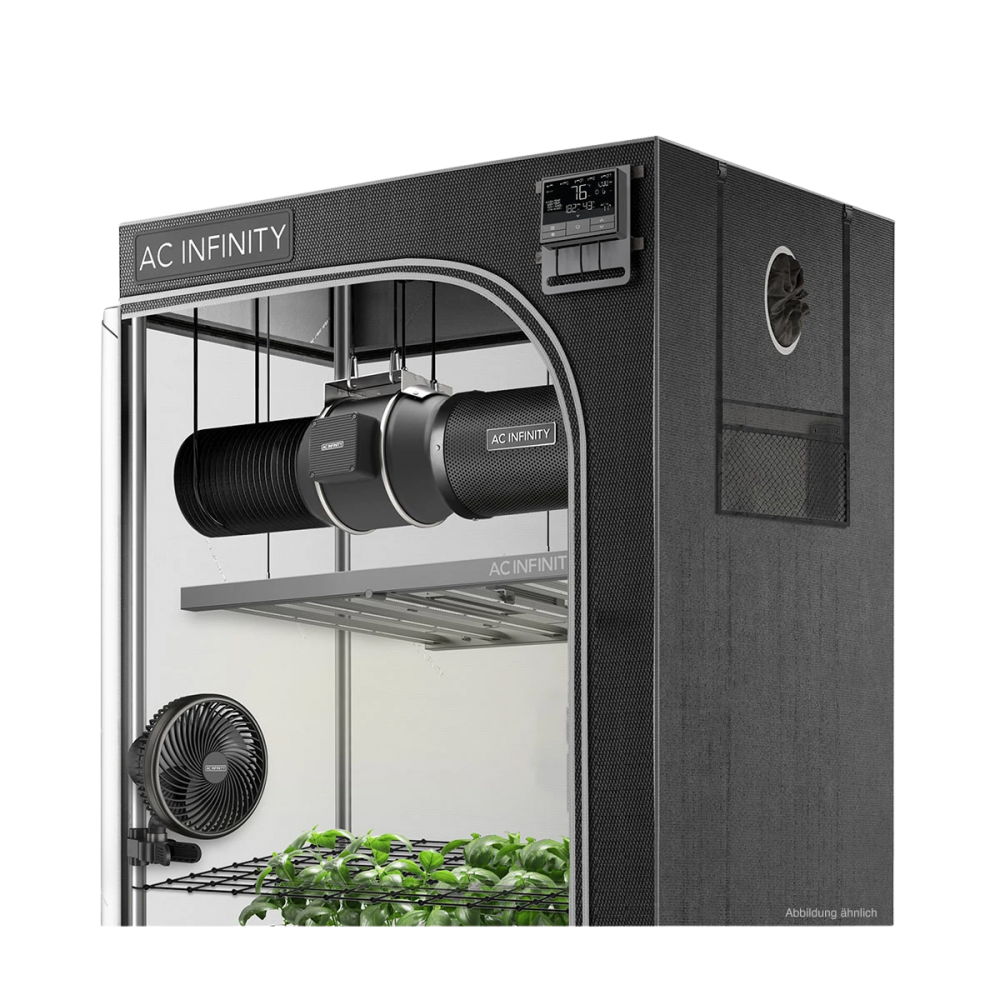

AC Infinity - Advance Grow Tent System 60x120x180 PRO, 3 Plant Set - Greendoor Edition

An advanced grow tent system with intelligent control options to manage your grow environment and ensure ideal growing conditions for a successful harvest. The inline fan, activated carbon filter and ventilation ducts control the climatic conditions in the tent by removing heat, humidity and odours from the tent. The oscillating clip-on fan circulates the air inside and provides a gentle breeze for your plants. Algorithmically selected and arranged LM301H diodes on the grow light board emit powerful LED lighting over a wide area to simulate natural sunlight and optimise growth. These components are housed in a high-density Oxford tent, equipped with a sturdy steel frame and Mylar walls to create a climate-controlled grow room.

INTELLIGENT PROGRAMMING

The CONTROLLER 69 PRO is the centrepiece of these components and allows all units to be programmed together or independently. This central control unit can set dynamic programmes that activate your grow devices in response to vapour pressure deficit (VPD), temperature and humidity, helping you to create your ideal grow room. Timer, cycle and schedule modes allow customised activation on demand for a variety of indoor growing purposes. Securely connect to the AC Infinity app via WiFi to access your indoor grow system from anywhere outside your home and unlock advanced programmes, alerts, notifications and historical charts.

Complete set

This package contains all the essential components to get you started with your indoor grow quickly, without having to buy them separately.

The complete grow tent set includes the following components:

• CLOUDLAB 642 - Advance Grow Tent 60 x 120 x 180 cm (x1)
• CONTROLLER 69 PRO (WiFi) - Grow tent controller (x1)
• CLOUDLINE LITE A6 - Inline fan 150 mm (x1)
• IONFRAME EVO3, Samsung LM301H EVO LED grow light, 280 W, 60 x 120 cm
• CLOUDRAY S6 - Oscillating recirculation clip fan (x1)
• Activated carbon filter 150 mm (x1)
• Pre-filter cloths for activated carbon filter (x2)
• Flexible 150 mm pipe, 2.43 metres long (x1)
• Suspension straps (x2)
• Rope clamp hangers (x2)
• 150 mm steel clips (x2)
• 1.5 metre duct tape (x1)
• Velcro fasteners (x10)
• 182 cm UIS plug-to-plug control cable (x1)
• 182 cm L-shaped UIS control cable (plug to plug) (x1)
• 19-litre fabric pots (x4)
• Elastic trellis net 60 x 120 cm (x1)
• Black cable ties (x1)
• Micro-tip pruning shears (x1)

Technical specifications:

Manufacturer AC Infinity Inc.

Product name Advance Grow System B24

Manufacturer number AC-PKB24

Size 60 x 120 x 180 cm

Ventilation openings 100 mm & 150 mm & 200 mm

Viewing window 30 x 30 cm

Material

• Outer tent material 2000D Oxford
• Inner tent material Mylar
• Material frame 22 mm steel tube
• Load capacity frame 75 kg

Product dimensions Inline fan

• Connection 150 mm
• Dimensions 21.2 x 32.0 x 20.0 cm
• Cable length to controller 183 cm
• Length of power cable 183 cm

Performance and technical data Inline fan

• Total air flow 600^m3/h
• Noise level 34 dBA
• Static air pressure 394 Pa
• Electrical voltage 100 - 240 V (50/60 Hz)
• Power max. 65 W
• Average power 35 W
• Current 0.95 A
• Power plug Schuko plug with CH adapter
• Humidity range 35 to 85% RH
• Temperature range 0 - 60 °C
• Protection class IP44
• L10 Life expectancy 67,000 hours

Product dimensions - Clip fan

• Blade size 16.5 cm
• Dimensions 22.2 x 26.6 cm
• Power cable 244 cm

Product performance and technical data - Clip fan

• Total air flow 552^m3/h
• Noise level 31 dBA
• Static air pressure 25 Pa
• Electrical voltage 100 - 240 V (50/60 Hz)
• Power 11 W
• Current 0.15 A
• Power plug Euro plug with CH adapter
• Humidity range 35 to 85% RH
• Temperature range 0 - 60 °C
• Protection class IP44

Product performance and technical data - Controller

• Number of individually controllable devices 4
• Max. supported power 10 W
• Input voltage 9 - 18 V
• Output 1 W
• Current 0.1 A
• Humidity range 35 to 85% RH
• Temperature range 0 - 60 °C

Product dimensions - LED Grow Light

• Dimensions 30 x 60 cm
• Power supply unit (driver) dimensions 21.9 x 4.0 cm

Product performance and technical data - LED grow light

• Light coverage up to 120 x 60 cm
• Diodes Samsung LM301H EVO
• Total number of LEDs 840
• Number of LEDs (EVO 3000K) 537
• Number of LEDs (EVO 5000K) 270
• Number of LEDs (Seoul 395 nm) 3
• Number of LEDs (OSRAM 660 nm) 27
• Number of LEDs (OSRAM 730 nm) 3
• Power supply (driver) SOSEN-320W
• Efficiency 3.14 µmol/j
• Spectrum 395 nm, 660 nm, 730 nm, 3000 K, 5000 K
• Power 280 W
• Electrical voltage 100–277 V (50/60 Hz)
• Current 1.22 A (at 230 V)
• Power plug Euro plug
• Humidity range 35 to 85% RH
• Temperature range 0 - 60 °C
• Rating IP65
• Life expectancy 50,000 hours
